Lively Minds

• Designed and implemented a modular finite state machine (FSM) to control NPC behavior in a scalable and maintainable way.
• Defined a strict IState contract to enforce consistency across all states (onEnter, onUpdate, onExit).
• Centralized state transitions in a reusable StateMachine controller, keeping states isolated and single-responsibility.
• Used explicit state enums and event enums to make transitions predictable, debuggable, and designer-friendly.
• Implemented event-driven transitions (interaction, timeouts, collisions) instead of hard-coded condition chains.
• Integrated movement, animation triggers, and timing logic at the state level while keeping the core engine agnostic.
• Designed the system to be future-ready, allowing new states to be added without modifying the core.

1export interface IState {
2  stateName: StateEnum;
3  onEnter(): void;
4  onUpdate(deltaTime: number): void;
5  onExit(): void;
6}
7
8export enum StateEnum {
9  IDLE = "idle",
10  WALK = "walk",
11  DANCE = "dance",
12  TALK = "talk",
13  READ = "read",
14  WRITE = "write",
15}
16
17export enum StateEvent {
18  WALK_REQUESTED = "walkRequested",
19  TALK_REQUESTED = "talkRequested",
20  BOOK_COLLISION = "bookCollision",
21  WRITE_REQUESTED = "writeRequested",
22  TIMEOUT = "timeout",
23}

1import { IState } from "./IState";
2
3export class StateMachine<S extends string, E extends string> {
4  private transitions: Record<S, Partial<Record<E, S>>>;
5  private states: Map<S, IState>;
6  private currentState: S | null = null;
7
8  constructor(transitions: Record<S, Partial<Record<E, S>>>) {
9    this.transitions = transitions;
10    this.states = new Map();
11  }
12
13  addState(state: IState & { stateName: S }): this {
14    this.states.set(state.stateName, state);
15    return this;
16  }
17
18  setInitialState(state: S): void {
19    this.setState(state);
20  }
21
22  private setState(newState: S): void {
23    if (this.currentState === newState) return;
24
25    if (this.currentState) this.states.get(this.currentState)?.onExit();
26    this.currentState = newState;
27    this.states.get(this.currentState)?.onEnter();
28  }
29
30  updateState(deltaTime: number): void {
31    if (!this.currentState) return;
32    this.states.get(this.currentState)?.onUpdate(deltaTime);
33  }
34
35  handleEvent(event: E): void {
36    if (!this.currentState) return;
37
38    const next = this.transitions[this.currentState]?.[event];
39    if (!next) return;
40
41    if (next !== this.currentState) this.setState(next);
42  }
43
44  getCurrentState(): S | null {
45    return this.currentState;
46  }
47}

• Implemented an NPC factory that spawns NPCs using JSON-driven configuration.
• Defined NPC identity, metadata, sprites, and ideas via external data files.
• Supported random placement while handling collisions between NPCs, player, and world.
• Included fallback NPC definitions to handle data or asset failures.

1[
2  {
3    "name": "Pythagoras",
4    "dates": "570–495 BCE",
5    "about": "Pythagoras was an ancient Greek philosopher and mathematician best known for the Pythagorean theorem.",
6    "image": "assets/Pythagoras/front_breathe1.png",
7    "keyIdeas": ["Everything is number"],
8    "quote": "Number rules the universe."
9  }
10]

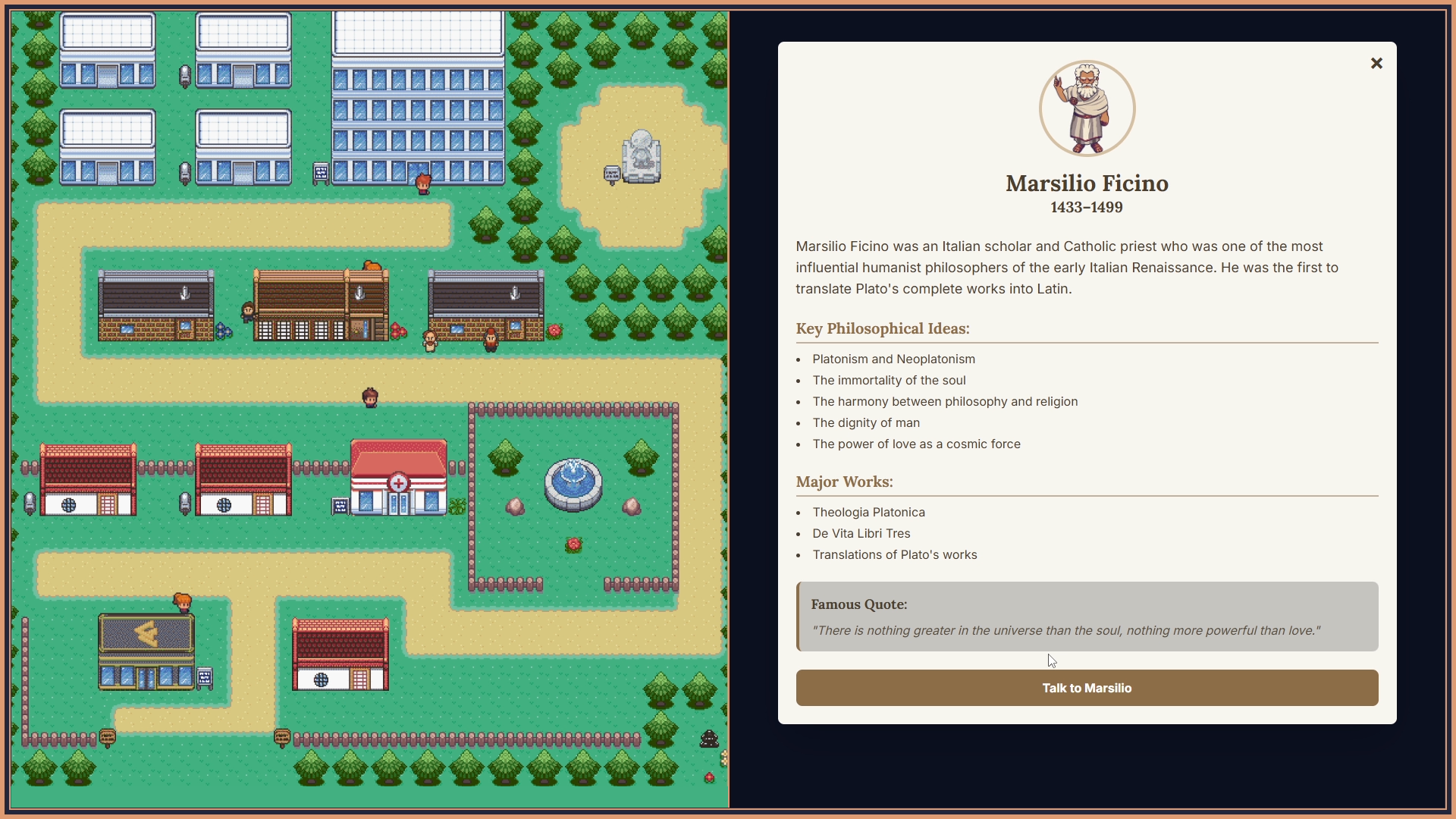

• Implemented hover, focus, and click-based interactions.
• Displayed contextual UI elements such as NPC name banners and metadata panels.
• Enabled players to initiate conversations directly from the world.

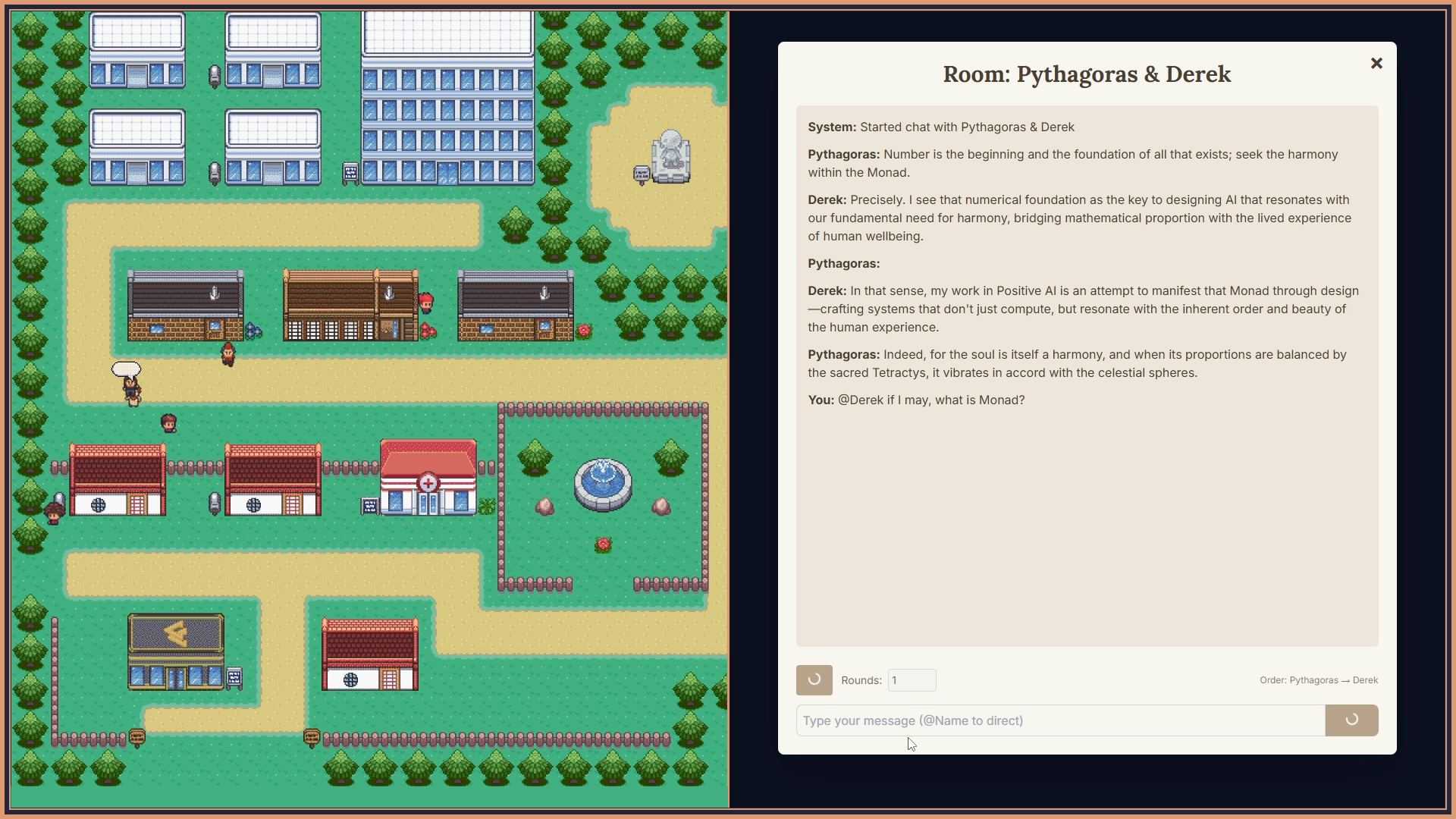

• Allowed players to join ongoing NPC-to-NPC conversations.

• Built a backend chat service using FastAPI.
• Integrated Gemini as the LLM provider.
• Supported single-NPC and multi-NPC conversations.
• Preserved NPC identity and context across group dialogues.
• Designed the API to be stateless and horizontally scalable.

• Built a shared animation abstraction used by both NPCs and the player.
• Implemented a base animation interface to standardize playback, transitions, and layering.
• Supported flat and layered animation strategies.
• Decoupled animation logic from gameplay and state logic.
• Designed the system to scale from simple NPCs to complex characters.

• Created the complete project solo, covering gameplay, UI, and backend systems.
• Integrated the game canvas (Phaser) with the UI layer (React + Tailwind CSS) into a cohesive experience.
• Used free assets for rapid iteration, with select custom sprite sheets for key NPCs.
